Kitchen Food Waste Garbage Disposer/composter Electric compost Machine/Mixer Auto Technology High-speed BLDC

Device Parameter

Please check the detailed data of our disposer bellow

Product Name

Food waste disposer
Model No.	MD-11200
In Put	220 V , 60 Hz / 110 V , 50 Hz
Rate Power	550 W
Processing Capacity	2 L or 1 kgs
N.W.	9.8 Kgs
Product Size	H379 X L288 X W308 mm
Express Package	H500 X L370 X W390 mm
Product Color	Black or white available

PRODUCT DISPLAY

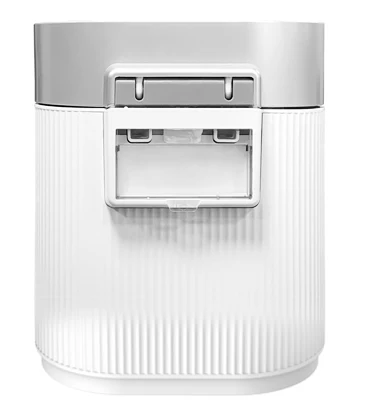

Water Collecter

Metal Logo position

Control Panel

———-It’s the slik-screen logo position, you can print your logo here(customized).

————It’s multi-touch panel

————-It’s OPEN BUTTON

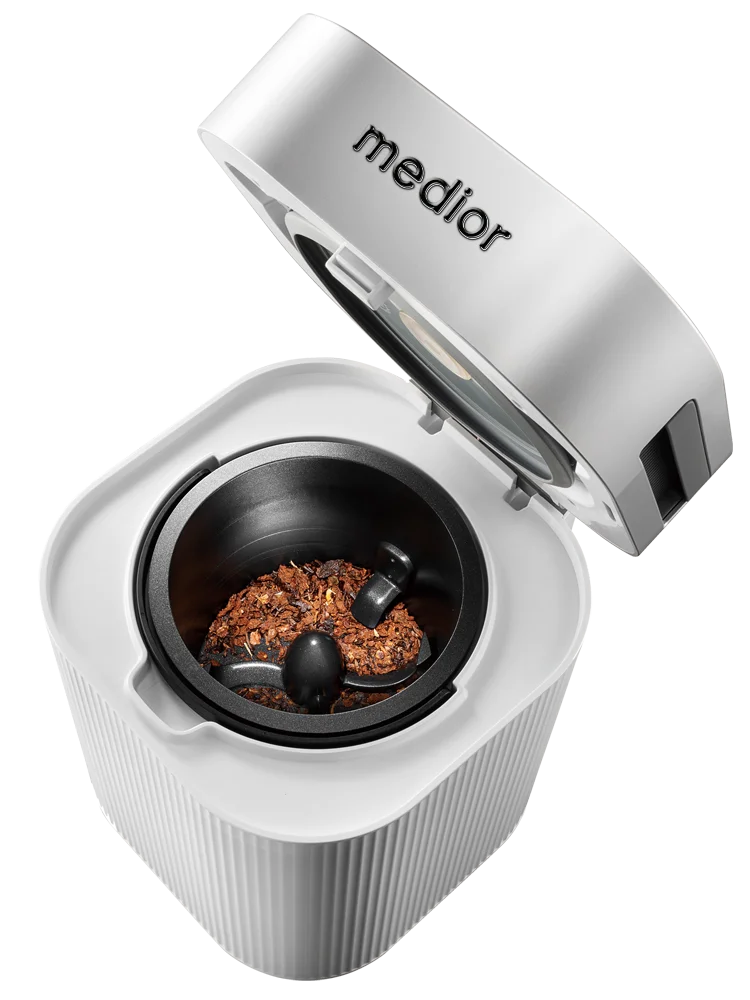

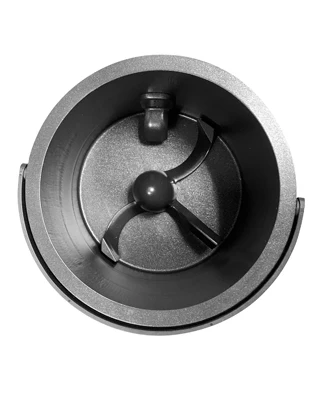

Disposal Bucket

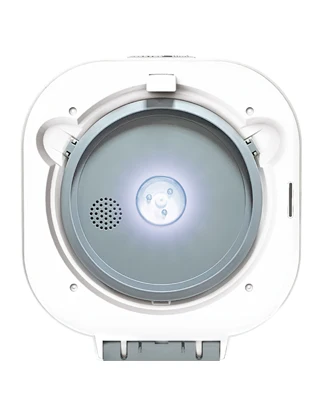

UV-C Sterilize Light

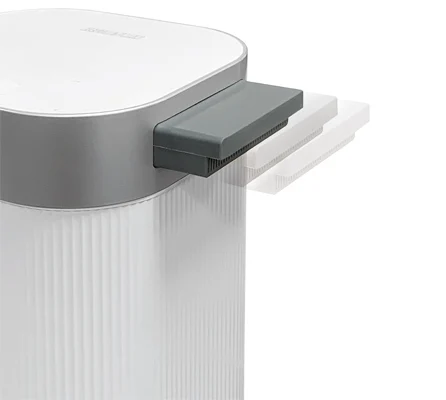

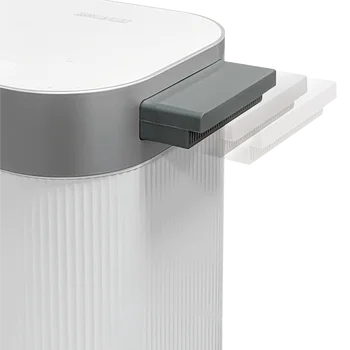

Carbon Filter

This carbon filter is replaceable. and we suggest to change the carbon filter each week.
We provide 2 pcs spare carbon filters with the device for free. and you can buy the carbon filters from us to retail to the consumer as . consumables.

HOW TO USE

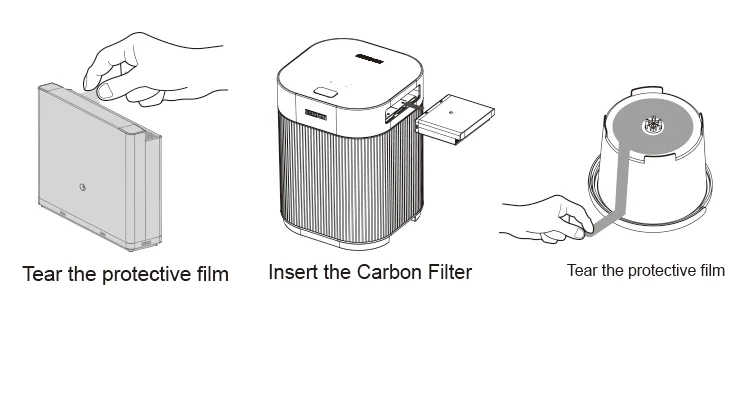

Preparatory Work

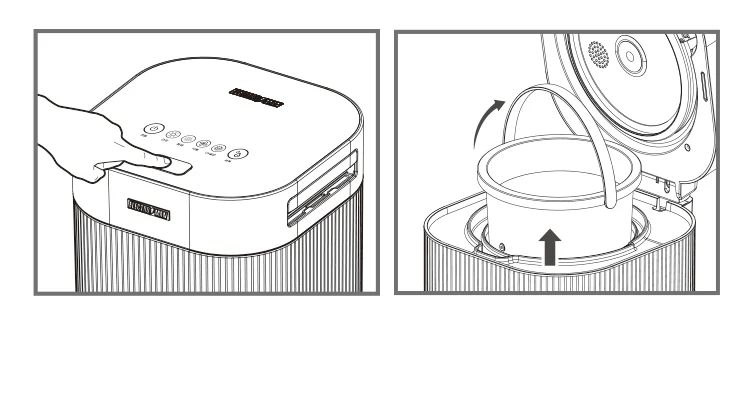

Press OPEN BUTTON to open the cover

Take out the treatment bucket

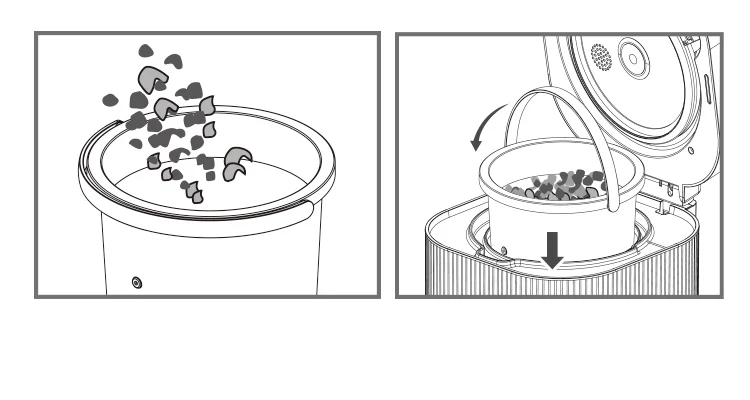

Put the food wastes into the treatment bucket

Put the treatment bucket back into the machine

Closed the Lid

Touch the “on/off” symbol

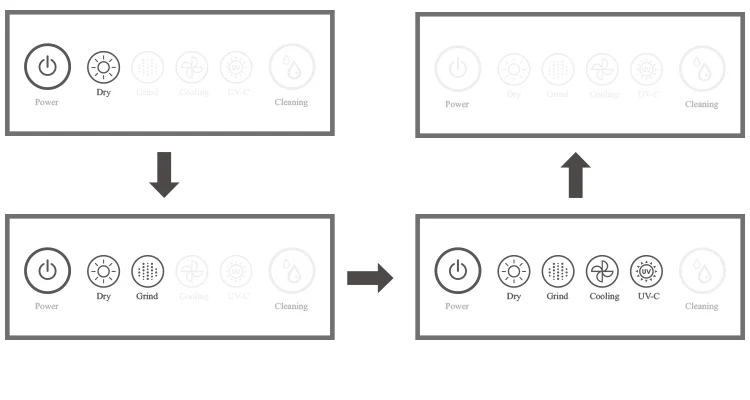

Process Indicator

To explain the meaning of each indicator light indicated

Phase Ⅰ

It means “drying” mode on. the heating plate start work, and keep heating the food wastes. the blender start work periodically.

Phase Ⅳ

The program goes into last phase – storage mode. you’d better to empty the treatment bucket before next use.

Phase Ⅱ

It means “Drying” & “Grind” mode on at same time. the heating plate keep working, and the blender will works at “full speed”. this process will lasts as long as 1.5 hours.

Phase Ⅲ

It means “Drying” & “Grind” process had been past, “Cooling” & “UV-C”(sterilization) mode start working.

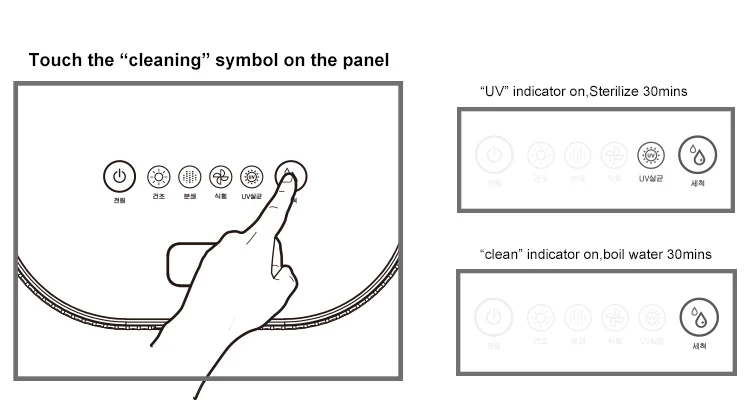

Smart Self-cleaning

To explain how to use the “Cleaning” mode

The All Clear

If the machine does’t works well, and the indicators keep flashing with buzzing. please do the following:

All Clear Operation

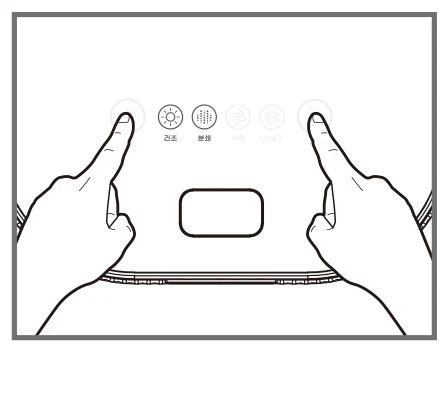

Long press “on/off” & “Cleaning” symbol on the touch panel for 10 seconds to all clear the error reporting.
But if you open the lid during using, then the device will enter into High-Limit program, you will unable to re-start the device, till the temperature of the heating plate reduce to default numbers.

PRODUCT PACKING

Color Box Size

H480 X L355 X W375 mm

Carton Size

H500 X L370 X W390 mm
